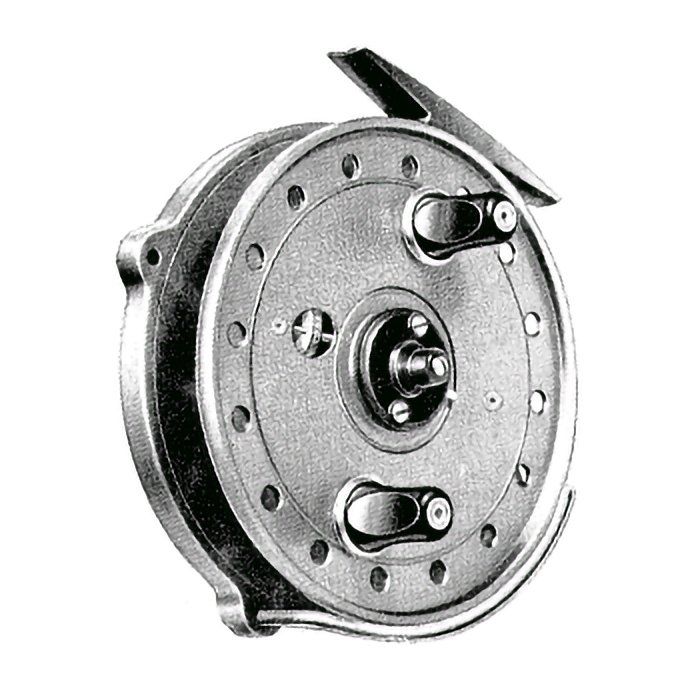

The TRUDEX

For Coarse Fishing or Trolling with Fine Tackle
A less expensive model but extremely efficient with all essentials such as Check Work, Bearings and other details as the higher priced models

Features Include:

• Exceptionally free running line drum, with bearings of the pivotal centrepin type.
• Fitted with a regulator by which the line drum can be controlled.
• Built in a contracted form with large diameter line drum, providing rapid recovery of line.
• ​Chrome plated line guard with interchangeable position for left- or right-hand use as desired.
• The clearance between the back flange of the line drum and the frame is extremely fine, thus avoiding the finest of Nylon lines fouling the mechanism.


1959 Retail Price*: £3 3s
*exclusive of Purchase Tax which is equal to one sixth of the price.

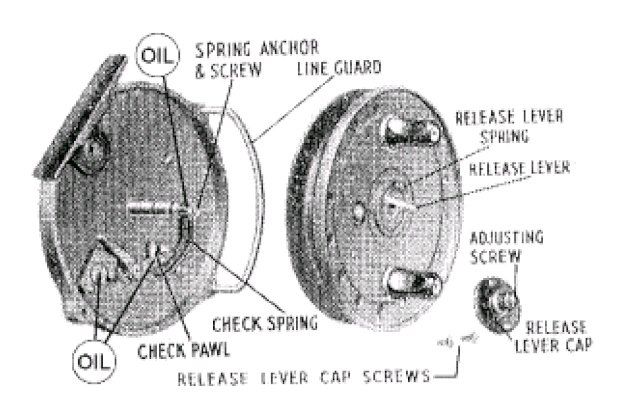

LUBRICATING, CLEANING & CARE OF YOUR TRUDEX

• To dismantle, pull aside the Release Lever at the front and lift Line Drum from the frame.

• Oil the Spindle, Check Wheel and movable parts of the check mechanism, using good quality thin oil.

• To replace Line Drum, pull aside Release Lever, to allow it to go easily into position. Do not use force.

• A little oil at the top and base of the handles adds to the sweet working of the reel

• The center screw of the Release Cap is for the adjustment of any end-play that may develop through normal wear.

• After use remove all traces of moisture and keep your reel in a dry place.
