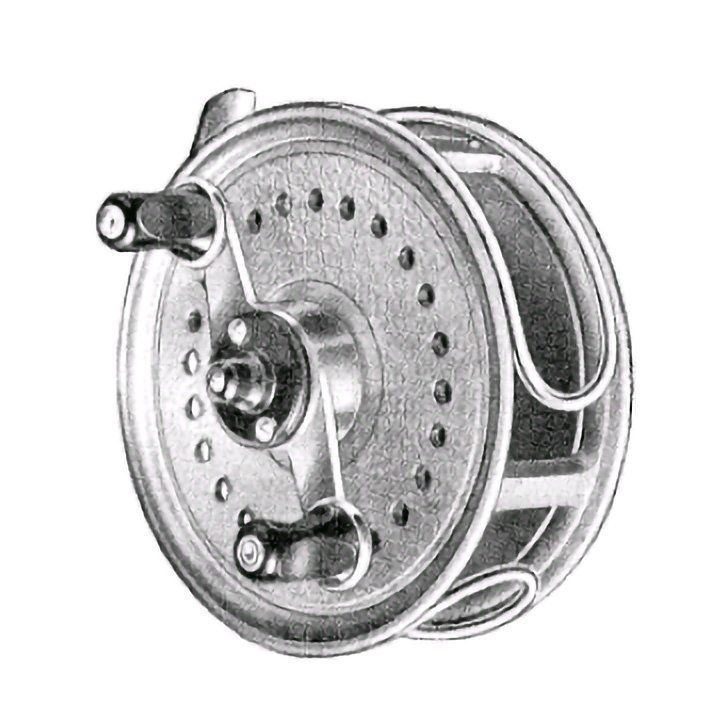

THE LANDEX FLY REEL

THE LANDEX FLY REEL

Patent check regulator, permitting variable tension to main check spring.

Emergency set of checkwork, mounted in a cage; can be readily engaged without the aid of equipment.


​INDEPENDENT DOUBLE HANDLE UNIT REMAINS STATIONARY when playing a fish or pulling off line; disengagement and engagement are entirely automatic.​


DO NOT TRY TO ENGAGE THE HANDLE UNIT FOR CHECKING A RUNNING FISH: SERIOUS DAMAGE COULD RESULT.


DRUM FACE EXPOSED FOR FINGER CONTROL when playing a fish - to obviate changing hands.

  • Patent indented handles, providing perfect grip.
  • Release lever latch, for quick removal of handle unit and line drum; obviating loose parts and the use of equipment.
  • Interchangeability of replacement parts.
  • A revolutionary Clip-on Line Guard giving protection from friction by the line is fitted standard on all models.


(All prices are exclusive of Purchase Tax which is equal to one sixth of the price which must be added)
MW = Medium Width (drum width 0.875 inches), W = Extra Wide (drum width 1.250 inches). (3½" drum width 0.562 inches).

LUBRICATING, CLEANING & CARE OF YOUR LANDEX

DISMANTLING

  • To remove winding unit, hold release lever and pull the unit gently forward.
  • Remove the line drum by exerting pressure on the underside of the front flange; this will simultaneously withdraw the toggles unit.
  • REGULATOR (when fitted) SHOULD BE IN THE 'OFF' POSITION.
  • DO NOT USE FORCE, OR DISMANTLE UNNECESSARILY.
  • Oil the spindle, check wheel, and the movable parts of the check mechanism.​

ASSEMBLING

  • Replace line drum, then gently press the toggles unit (which should be an interference fit) on to the spindle into the recess of the line drum.
  • Replace winding unit by holding release lever aside, observing that the cam shaped projection of the latter is placed between the toggles. DO NOT USE FORCE.
